• 其他栏目

    侯炜

    • 副教授 硕士生导师
    • 性别:男
    • 出生日期:1981-12-22
    • 毕业院校:西安建筑科技大学
    • 学历:博士研究生毕业
    • 学位:工学博士学位
    • 入职时间:2011-07-14
    • 所在单位:土木工程系
    • 办公地点:华侨大学厦门校区土木学科实验大楼506
    • 电子邮箱:

    访问量:

    开通时间:..

    最后更新时间:..

    Wei Hou*, Zhi-Qiang Li, Wan-Yang Gao*, Pan-Deng Zheng, Zi-Xiong Guo. Flexural behavior of RC beams strengthened with BFRP bars-reinforced ECC

    点击次数:

    所属单位:School of Civil Engineering, Huaqiao University

    发表刊物:Composite Structures

    关键字:Flexural behavior Strengthening RC beams ECC BFRP bars Theoretical analysis

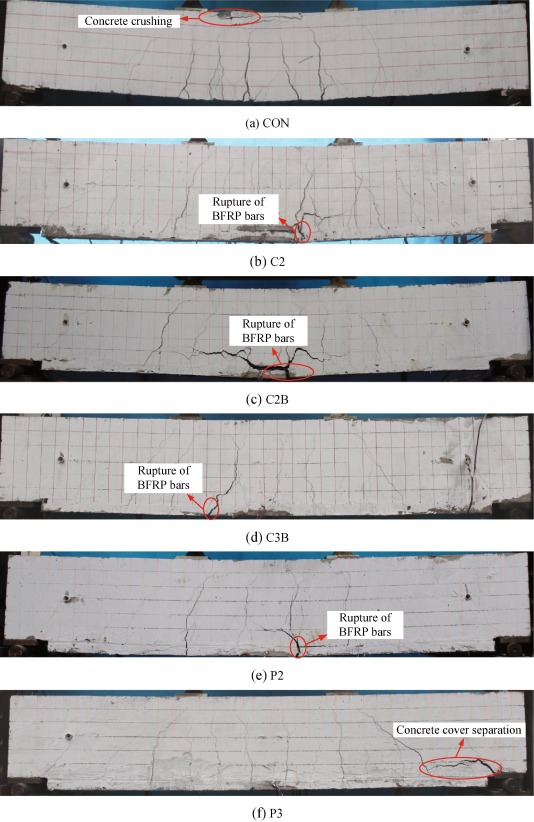

    摘要:This paper has proposed a new strengthening system made of basalt fiber-reinforced polymer (BFRP) bars-reinforced engineered cementitious composite (ECC) matrix (hereinafter referred to as “BFREM” for brevity) for repairing of RC beams. Six specimens including a control beam and five beams strengthened with the BFREM layers were prepared and tested. The test variables included the reinforcement ratio of BFRP bars (0.94% or 1.41%) and the installation method (prefabricated or cast-in-place) used for the BFREM layer as well as the presence of the end anchorage system (with steel bolts). The test results showed that two failure modes of the strengthened beams were the tensile rupture of BFRP bars and the concrete cover separation with the strengthening layer attached. The cast-in-place method incorporating the end anchorage system was capable of inhibiting the debonding failure of the BFREM layer, thereby making better utilization of the strengthening materials. Moreover, the proposed strengthening system was efficient in enhancing the ultimate loads of the strengthened beams, which were 34%–48% higher than that of the control beam. A theoretical analysis was then conducted to predict the flexural strengths of the tested beams, and its reliability was verified by comparing the test results and the theoretical predictions.

    论文类型:期刊论文

    学科门类:工学

    一级学科:土木工程

    卷号:241:

    页面范围:112092

    是否译文:

    发表时间:2020-02-22

    收录刊物:SCI

    DOI码:10.1016/j.compstruct.2020.112092

    影响因子:4.829

    合写作者:Zhiqiang Li,Pandeng Zheng,Zixiong Guo

    通讯作者:Wei Hou,Wanyang Gao

    发布期刊链接:https://doi.org/10.1016/j.compstruct.2020.112092
